Trituradora de percusión nueva fabo dmk-01 dmk-01 serie 130–200 t/h sekundär-prallbrecher eléctrico

Tarifa de venta :

Precio bajo pedido

Volver a buscar

Trituración, reciclaje Fabo DMK-01 Serie...

Trituradora de percusión nueva Fabo DMK-01 DMK-01 Serie 130–200 t/h Sekundär-Prallbrecher Eléctrico

2026
0 Horas
52511 Geilenkirchen

Información principal
Ref. web :	11277615
Tipo	Trituradora
Bajo carrocería	Trituradora de percusión
Marca	Fabo
Gama (marca : Fabo )	DMK-01
Modelo	DMK-01 Serie 130–200 t/h Sekundär-Prallbrecher
Estado	Nuevo
Año	2026
País	ALEMANIA
Constructor	Fabo

Información complementaria Fabo DMK-01 Serie...
Plazo de entrega (en días)	90

Motor
Potencia del motor	160 kW

Características Fabo DMK-01
Peso	12 T

Estado del material
Energía	Eléctrico

Caja de cambios y transmisión
Precisiones caja de cambios	-

Comentarios
All of our products are made with care and covered for 1 year warranty! Installation and Operator Training FREE DMK series are secondary impact crushers that leading to the crush of medium and high hardness materials, which are used after jaw crushers or primer impact crushers. DMK crushers are also designed to reduce wear costs while increasing capacity and cubic production. It reduces medium and high hardness materials such as limestone, dolomite, granite and basalt into the desired size of asphalt and concrete aggregate. The ease of maintenance and adjustment is one of the major advantages of this type of crusher. Hydraulic body opening system, adjustment of crushing plates from the outside, easy pallet and lining replacement ensure that these types of crushers can be used easily on site conditions. GENERAL SPECIFICATIONS AND FUTURES: -High capacity -High reduction ratio -Wear surfaces are protected by solid filler electrode welding -Hammers and crushing plates are manufactured from high manganese steel casting -Inner surfaces of the crusher is coated with wear resistant lining plates -Easy maintenance thanks to hydraulic adjustment system TECHNICAL SPECIFICATIONS • Model: FABO DMK-01 • Type: Secondary Impact Crusher • Capacity: 130-200 tph • Size: 1120 x 1000 mm • Max Feeding: 450mm • Motor: Heavy duty GAMAK, 160 kW Bearings: Heavy duty SKF-FAG • Speed: 750 rpm • Weight: 12400 kg • Including chassis, motor and safety guards. FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
Ver todo

Comentarios

*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

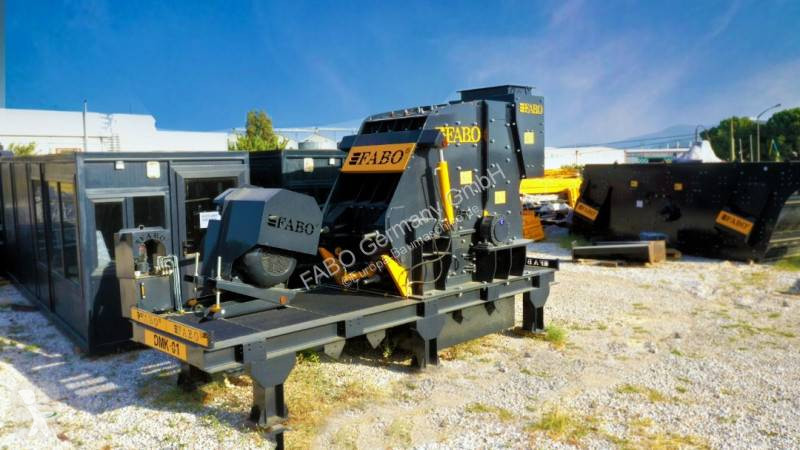

DMK series are secondary impact crushers that leading to the crush of medium and high hardness materials, which are used after jaw crushers or primer impact crushers. DMK crushers are also designed to reduce wear costs while increasing capacity and cubic production. It reduces medium and high hardness materials such as limestone, dolomite, granite and basalt into the desired size of asphalt and concrete aggregate. The ease of maintenance and adjustment is one of the major advantages of this type of crusher. Hydraulic body opening system, adjustment of crushing plates from the outside, easy pallet and lining replacement ensure that these types of crushers can be used easily on site conditions.

GENERAL SPECIFICATIONS AND FUTURES:
-High capacity
-High reduction ratio
-Wear surfaces are protected by solid filler electrode welding
-Hammers and crushing plates are manufactured from high manganese steel casting
-Inner surfaces of the crusher is coated with wear resistant lining plates
-Easy maintenance thanks to hydraulic adjustment system

TECHNICAL SPECIFICATIONS
• Model: FABO DMK-01
• Type: Secondary Impact Crusher
• Capacity: 130-200 tph
• Size: 1120 x 1000 mm
• Max Feeding: 450mm
• Motor: Heavy duty GAMAK, 160 kW Bearings: Heavy duty SKF-FAG
• Speed: 750 rpm
• Weight: 12400 kg
• Including chassis, motor and safety guards.

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
