Trituradora de mandibula nueva fabo clk-1175 clk 1175 | 200–300 t/h primär-backenbrecher eléctrico

Tarifa de venta :

Precio bajo pedido

Volver a buscar

Trituración, reciclaje Fabo CLK 1175 | 200–300...

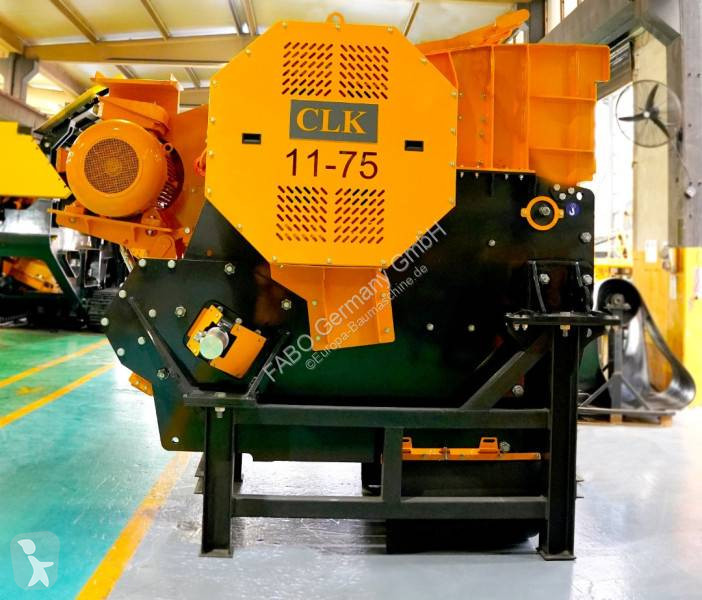

Trituradora de mandibula nueva Fabo CLK-1175 CLK 1175 | 200–300 t/h Primär-Backenbrecher Eléctrico

2026
0 Horas
52511 Geilenkirchen

Información principal
Ref. web :	11277614
Tipo	Trituradora
Bajo carrocería	Trituradora de mandibula
Marca	Fabo
Gama (marca : Fabo )	CLK-1175
Modelo	CLK 1175 \| 200–300 t/h Primär-Backenbrecher
Estado	Nuevo
Año	2026
País	ALEMANIA
Constructor	Fabo

Información complementaria Fabo CLK 1175 \| 200–300...
Plazo de entrega (en días)	90

Motor
Potencia del motor	110 kW

Características Fabo CLK-1175
Peso	21 T

Estado del material
Energía	Eléctrico

Caja de cambios y transmisión
Precisiones caja de cambios	-

Comentarios
Jaw Crushers generally crushes 200 to 300 tons per hour, according to their capacity. Higher capacity jaw crushers can be produced according to customers needed. The jaw crushers are generally used to crush the hardest rocks such as basalt, granite, and gabbro. With its strong and durable jaw structure, it has been one of the most preferred crushers of the mining industry for many years. With jaw adjustment you can get the desired product and desired capacities very well. It can be easily adjusted by its hydraulic pistons. GENERAL SPECIFICATIONS AND FUTURES: -Belt-pulley drive system -Jaw Plates manufactured from custom made cast high manganese steel with a high level of wear resistance -Eccentric shaft manufactured from Cr, Ni, Mo alloyed forged steel -Adjustable jaw opening with hydraulic setting -Utilizing toggle plates for safety purposes in case of overloading -The surfaces which exposed to abrasion are coated with lining plates TECHNICAL SPECIFICATIONS: • Model: FABO CLK 1175 • Type: Primary Jaw Crusher • Inlet Dimensions: 1070 x 760 mm • Jaw Opening: 45-160 mm • Max Feeding: 760 mm • Capacity: 200 to 300 Ton Per Hour • Motor: Heavy duty GAMAK, 110 Kw • Bearings: Heavy duty SKF-FAG • Weight: 21360 kg • Dimension: 2730 x 1698 x 2492 mm • Including motor and safety guards. All of our products are made with care and covered for 1 year warranty! Installation and Operator Training FREE FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
Ver todo

Comentarios

Jaw Crushers generally crushes 200 to 300 tons per hour, according to their capacity. Higher capacity jaw crushers can be produced according to customers needed. The jaw crushers are generally used to crush the hardest rocks such as basalt, granite, and gabbro. With its strong and durable jaw structure, it has been one of the most preferred crushers of the mining industry for many years. With jaw adjustment you can get the desired product and desired capacities very well. It can be easily adjusted by its hydraulic pistons.

GENERAL SPECIFICATIONS AND FUTURES:

-Belt-pulley drive system
-Jaw Plates manufactured from custom made cast high manganese steel with a high level of wear resistance
-Eccentric shaft manufactured from Cr, Ni, Mo alloyed forged steel
-Adjustable jaw opening with hydraulic setting
-Utilizing toggle plates for safety purposes in case of overloading
-The surfaces which exposed to abrasion are coated with lining plates

TECHNICAL SPECIFICATIONS:

• Model: FABO CLK 1175
• Type: Primary Jaw Crusher
• Inlet Dimensions: 1070 x 760 mm
• Jaw Opening: 45-160 mm
• Max Feeding: 760 mm
• Capacity: 200 to 300 Ton Per Hour
• Motor: Heavy duty GAMAK, 110 Kw
• Bearings: Heavy duty SKF-FAG
• Weight: 21360 kg
• Dimension: 2730 x 1698 x 2492 mm
• Including motor and safety guards.

*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
